TWC 160
Available in 10, 12, & 15 foot length with all major OEM direct connections
Rating:
- 160 Amps CO2 @ 100% Duty Cycle
- 100 Amps Mixed Gas @ 100% Duty Cycle
- Wire Capacity .023″ (0.6mm) – .045″ (1.2mm)
TWC 180
Available in 10, 12, 15, & 20 foot length with all major OEM direct connections
Rating:
- 180 Amps CO2 @ 80% Duty Cycle
- 120 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .023″ (0.6mm) – .045″ (1.2mm)
TWC 200
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 200 Amps CO2 @ 80% Duty Cycle
- 150 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .023″ (0.6mm) – .045″ (1.2mm)
TWC 250
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 250 Amps CO2 @ 80% Duty Cycle
- 200 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .023″ (0.6mm) – .045″ (1.2mm)
TWC 300
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 300 Amps CO2 @ 80% Duty Cycleo
- 200 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .023″ (0.6mm) – 1/16″ (1.6mm)

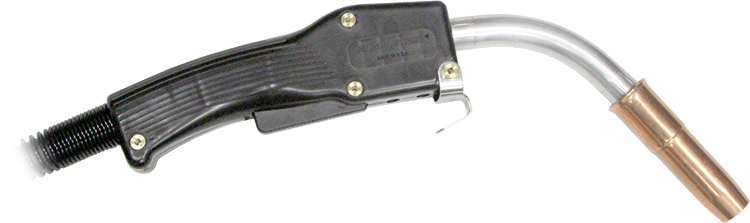

TWC 400
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 400 Amps CO2 @ 80% Duty Cycle
- 300 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .030″ (0.8mm) – 5/64″ (2.0mm)
TWC 500
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 500 Amps CO2 @ 80% Duty Cycle
- 375 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .035″ (0.9mm) – 7/64″ (2.8mm)
Click HERE for the 450SM Parts List

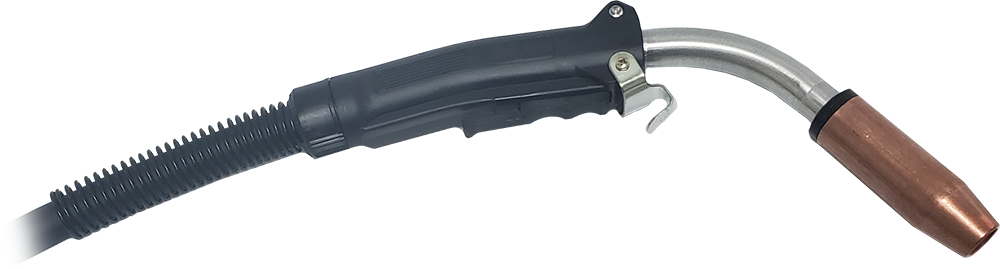

TWC 450SM - Suitable Replacement for Tweco® Spray Master®
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 450 Amps CO2 @ 60% Duty Cycle
- 350 Amps Mixed Gas @ 60% Duty Cycle
- Wire Capacity .030″ (0.8 mm) – 5/64″ (2.0mm)
Click HERE for the 550SM Amp Parts List
TWC 550SM - Suitable Replacement for Tweco® Spray Master®
Available in 10, 12, 15, 20, & 25 foot length with all major OEM direct connections
Rating:
- 500 Amps CO2 @ 80% Duty Cycle
- 375 Amps Mixed Gas @ 80% Duty Cycle
- Wire Capacity .035″ (0.9mm) – 7/64″ (2.8mm)
